01 / THE PLATFORM

Coastal
readiness.

ALMIRSAD is a 12-meter coast guard patrol boat designed around coastal monitoring, maritime patrol and rapid-response operations.

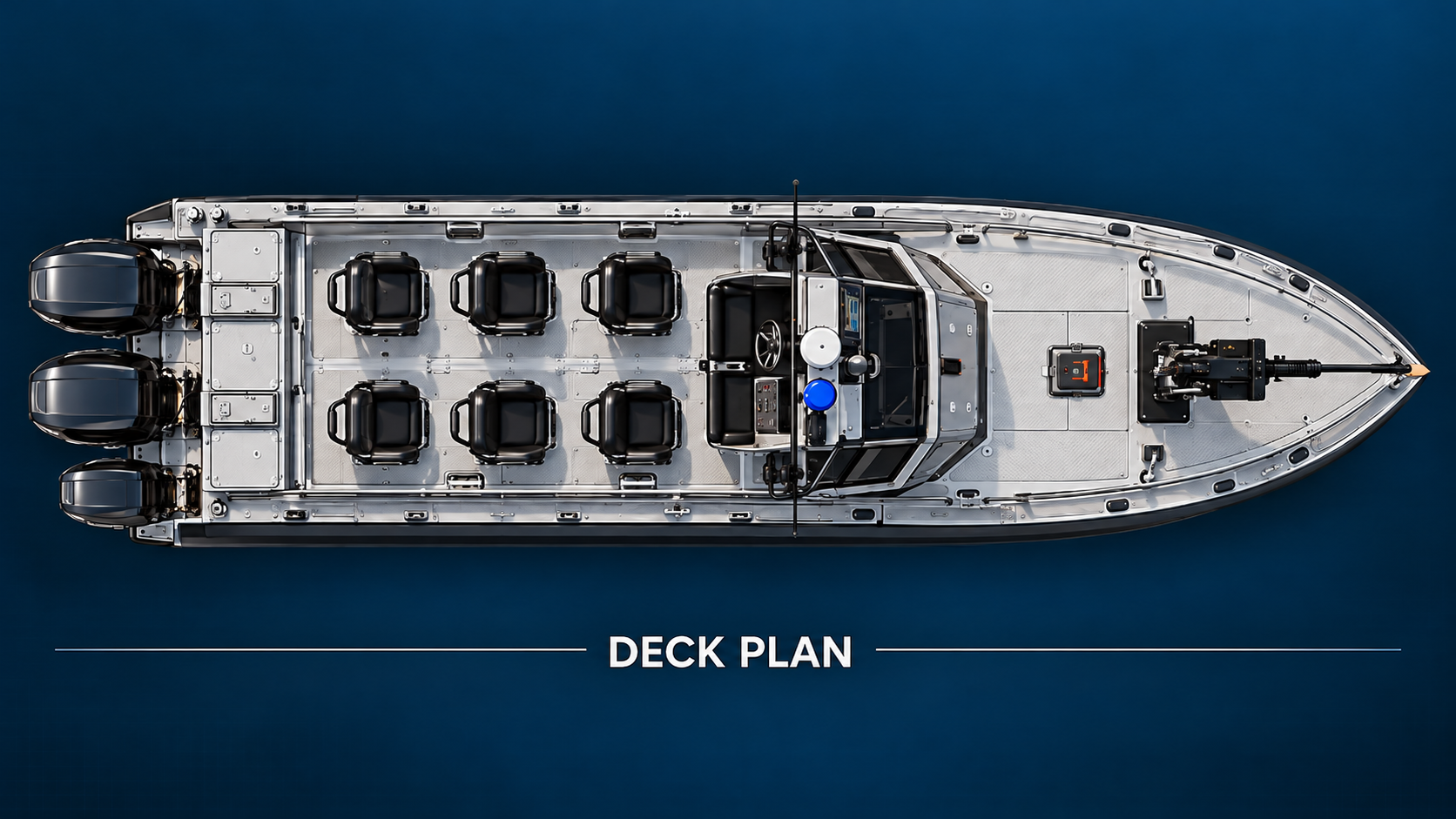

The supplied configuration illustrates an open deck with crew seating, navigation and observation systems, marine toilet, storage compartments and twin outboard engines.

Coastal surveillance

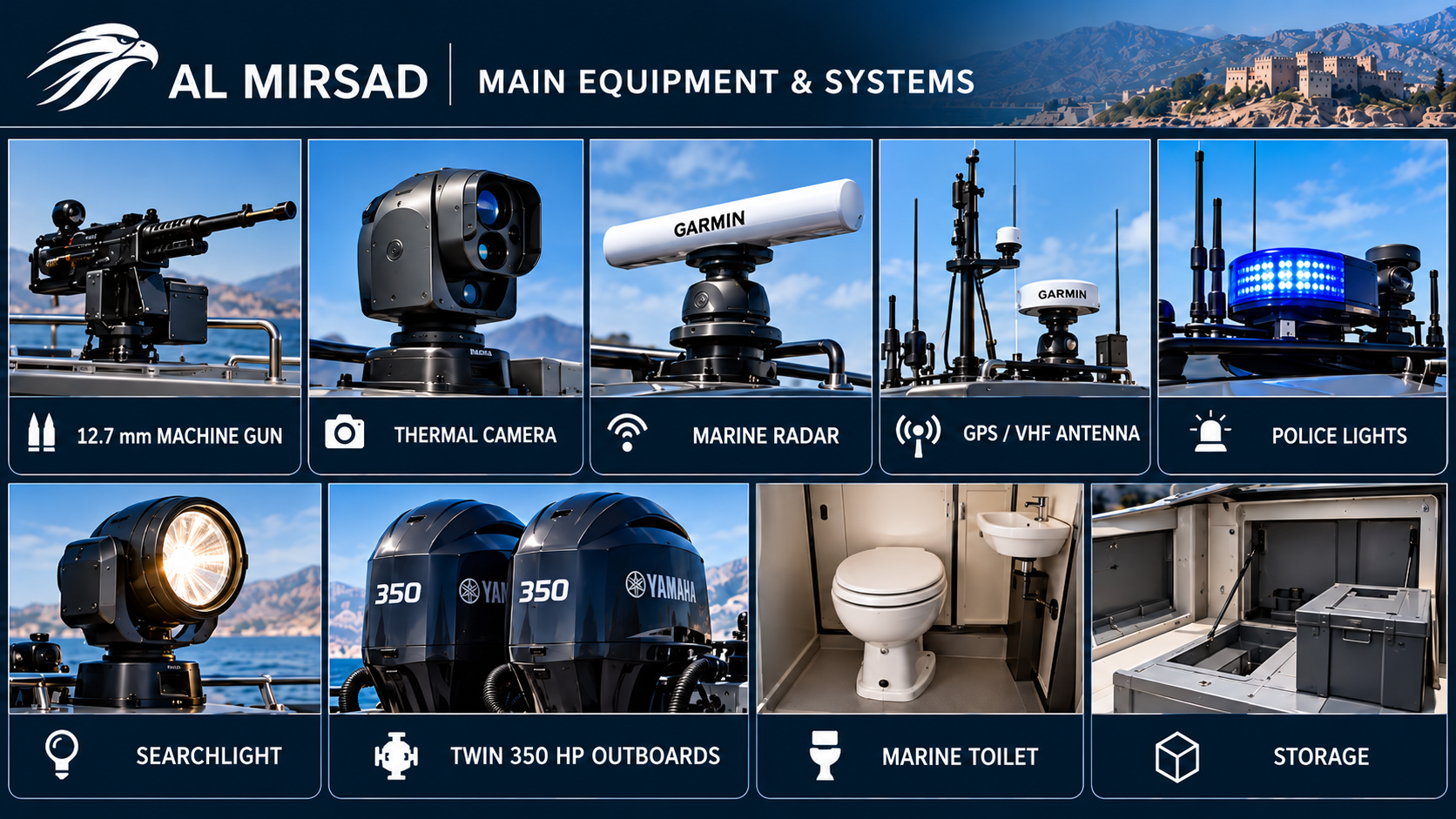

Marine radar, thermal camera and searchlight are shown in the supplied equipment illustration.

Marine mobility

12.000-meter length overall and 3.000-meter beam, with twin 350 HP outboard motors.

Navigation systems

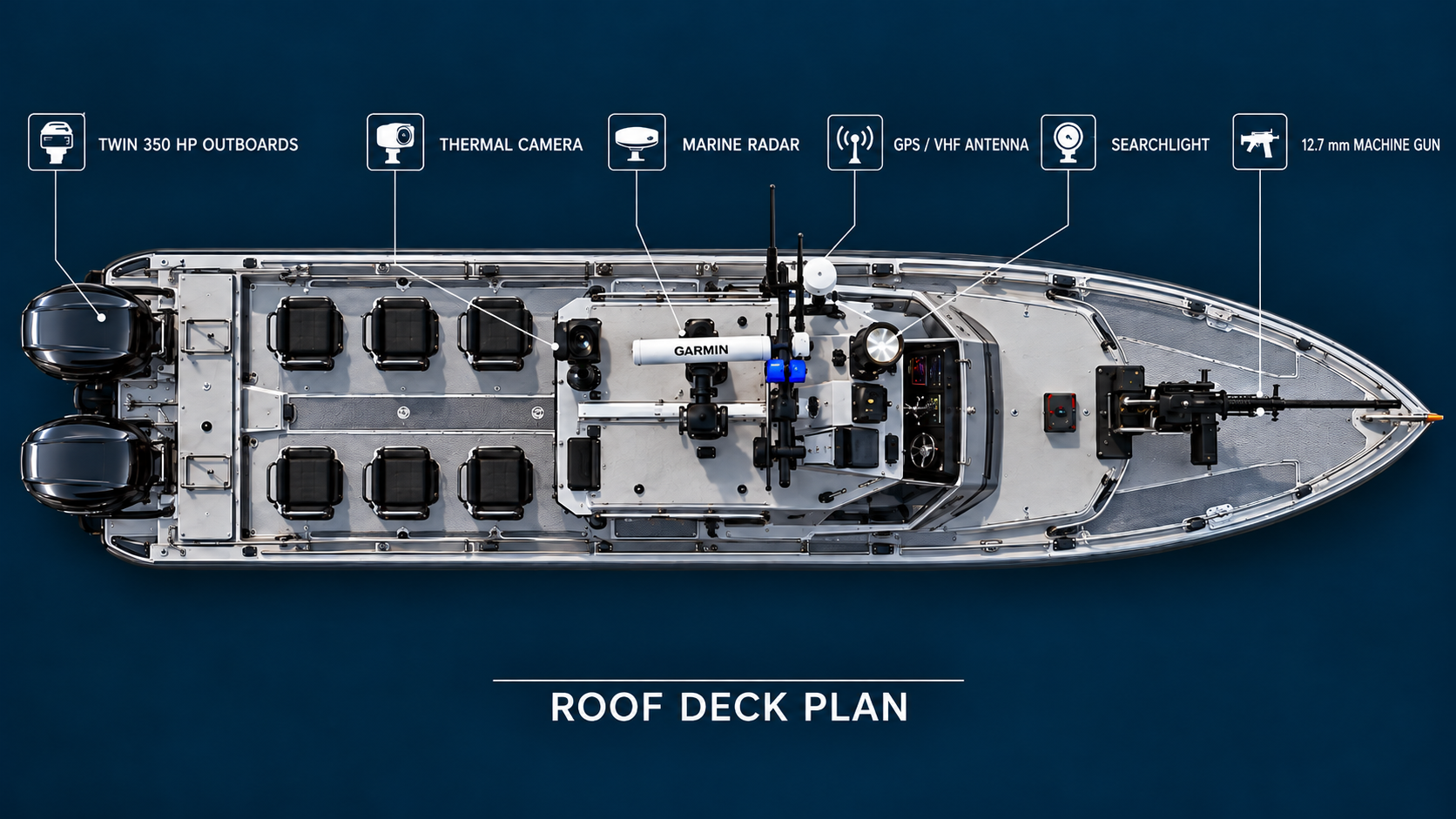

Marine radar, GPS / VHF antennas and navigation console are illustrated in the layout.

Onboard utility

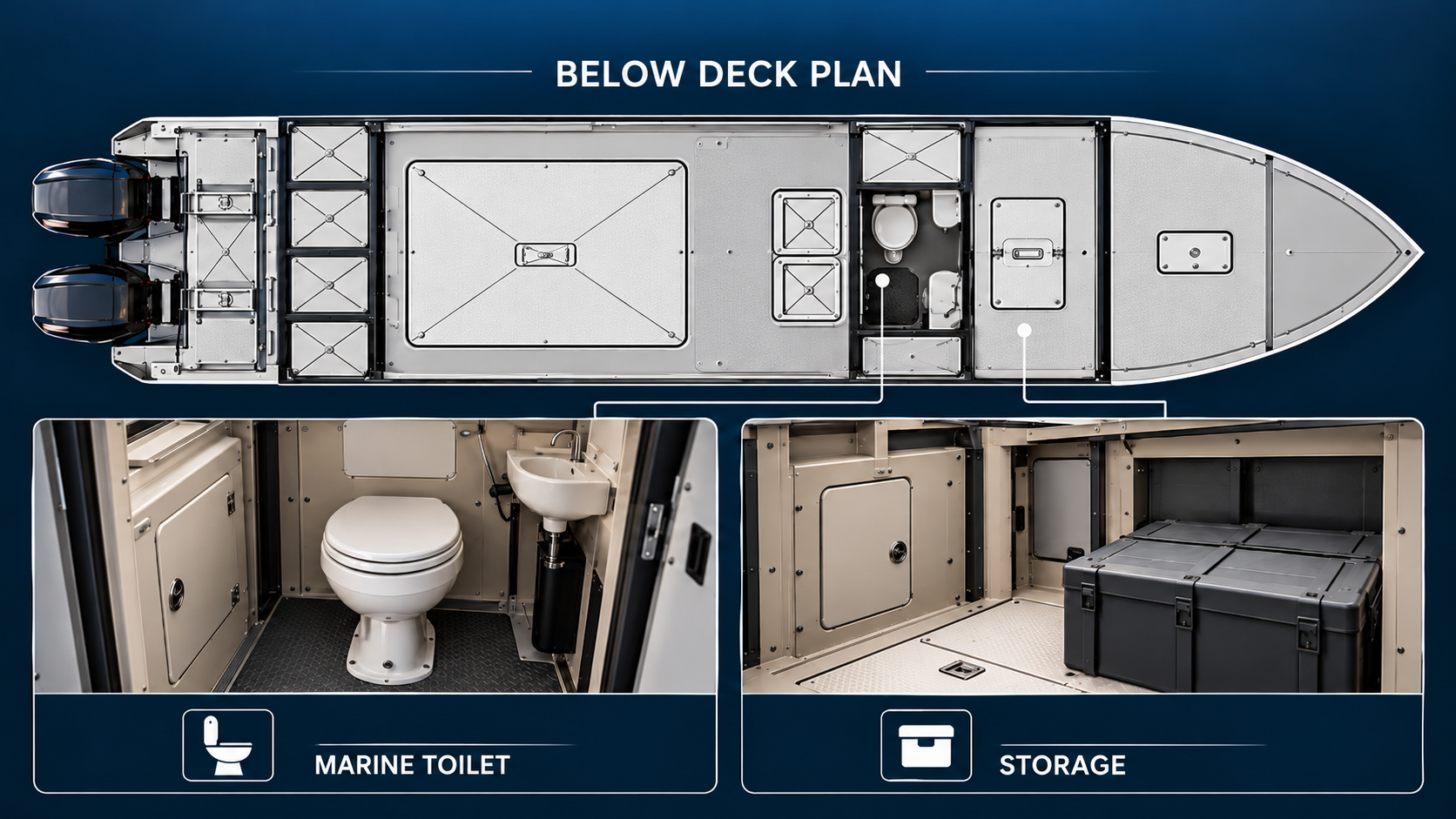

Open seating and operational deck space, below-deck storage and a marine toilet.

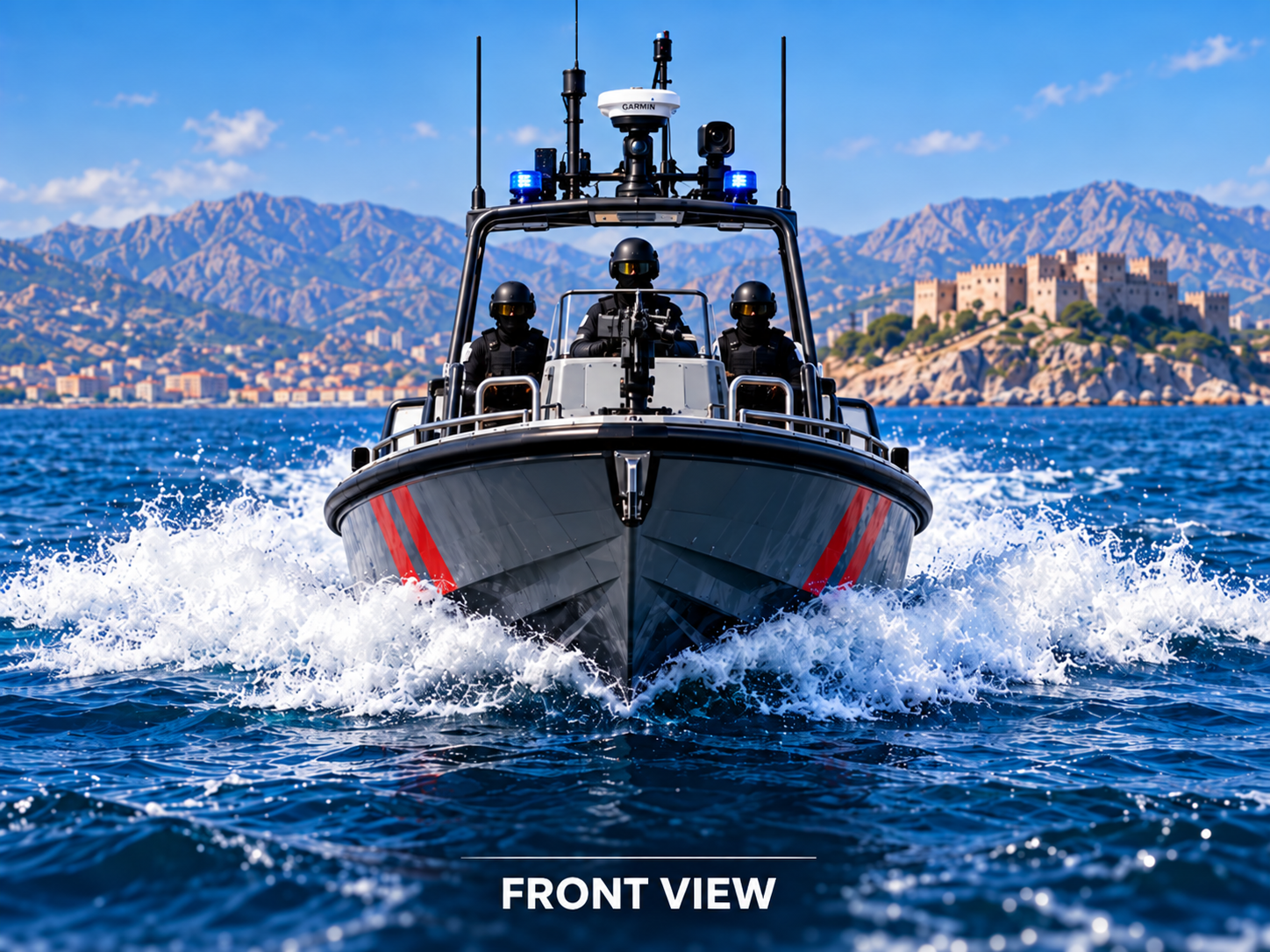

ALMIRSAD patrol boat underway, front view

BUILT FOR THE MISSION / ALMIRSAD

02 / TECHNICAL DATA

Technical specifications.

Principal dimensions and capacities are reproduced from the supplied 12 m × 3 m general arrangement drawing. Final configuration should be confirmed against build documents.

Dimensions & mass

Length overall: 12.000 m
Waterline length: 10.923 m
Beam: 3.000 m
Depth: 1.522 m
Draft (approx.): 0.455 m
Displacement (approx.): 5,600 kg

Propulsion & speed

Propulsion: Outboard motors
Engines: 2 × 350 HP
Total rated power: 700 HP
Speed (drawing): 60 miles unit as printed

The source drawing says “60 MILES” without specifying whether this means nautical miles per hour, mph or another measure.

Capacities & equipment

Fuel tank (gasoline): 800 L
Fresh water tank: 125 L
Holding tank: 100 L
Observation systems: Radar & thermal camera
Communications: GPS / VHF
Below-deck facilities: Toilet & storage

Technical values reflect the 12 m patrol boat drawing; equipment images show a represented configuration and are not independent performance certification.
